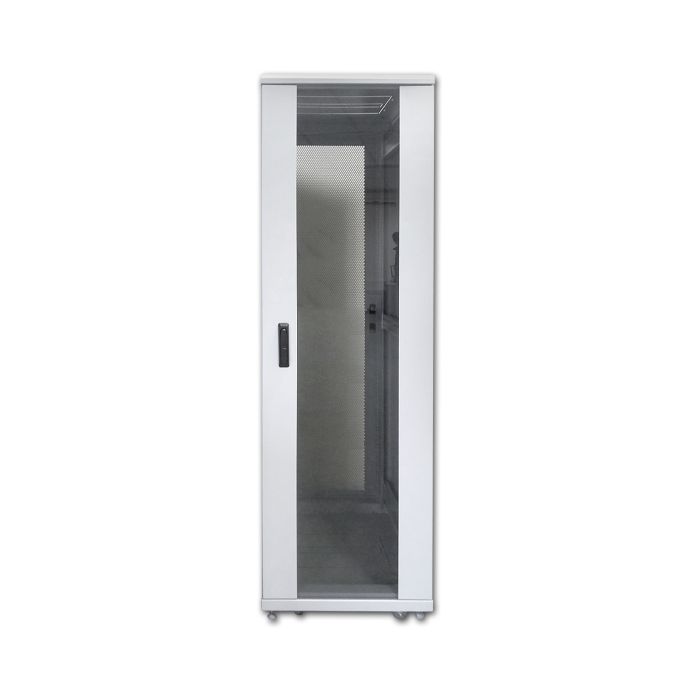

19" Комуникационен шкаф 42U/800mm, закалено стъкло, стандартна серия
Изчерпано количество
SKU
7.6516/42U
Options:
- 19 or 21 inches
- 18 / 24 / 30 / 33 / 42 / 46 units
- 600 / 800 / 1000 / 1200 mm
Description:
- welded frame shall be made of sheet steel 2,0 mm in thickness, side walls shall be made of sheet steel 1,2 mm in thickness, mounting rack shall be made of sheet steel 2 mm in thickness
- height of the cabinets: 42U or 46U*
- width: 600 or 800 mm
- depth: 600, 800, 1000, and 1200 mm
- bearing welded frames shall be made of steel 2 mm in thickness, side walls shall be made of sheet steel 1,2 mm in thickness, mounting rack made of sheet steel 2 mm
- door shall be fitted with a twist handle and lock arrangement, left and right hinge, angle of opening is more than 180
- rear panel (door) may be detachable with a lock arrangement
- detachable side panels with lock arrangements , detachable rear panel, design variants:
- metal, perforated (60%)
- with an insert of a 4 mm tempered glass
- cable enters through special hatches (on top and on the underside)
- the possibility exists of the fan unit installation (on top and on the underside), places of installation of the units are covered by slip blinds
- class of protection against ambient factors IP21
- anticorrosive and decorative coating powder enamel, standard color: RAL 7035 (gray); RAL 9005 (black) is also possible
- cabinets shall be installed on height-adjustable molded supports
- cabinets may be supplied in disassembled state, packaged in container or in the assembled condition (at the request of the customer)
- maximum allowable load: 900 kg (500 kg for the cabinets 18U and 24U high)
Manufacturer | TKS |
---|
