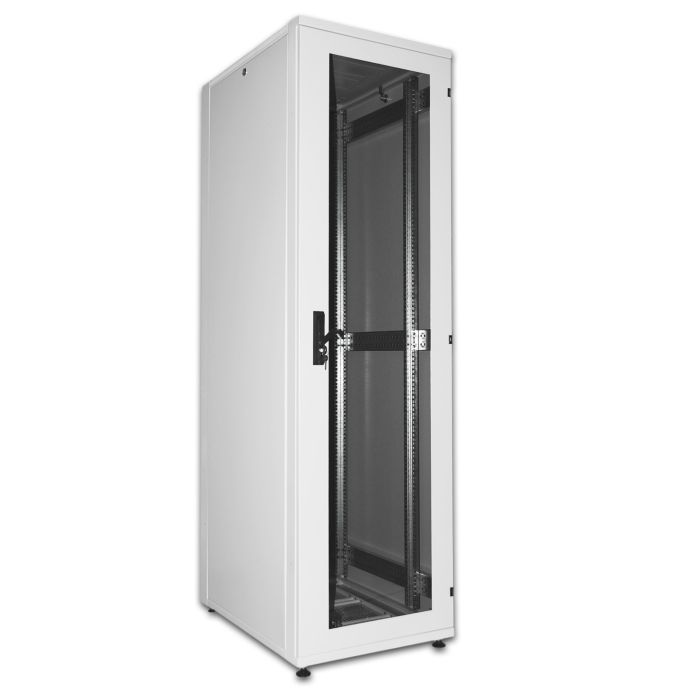

19" Комуникационен шкаф 42U/800mm, закалено стъкло, усилен
За цена моля да се свържете с нас.
- 19 or 21 inches
- 18 / 24 / 30 / 33 / 42 / 46 units
- 600 / 800 / 1000 / 1200 mm
- framework of the cabinet (sheet steel), modular construction
- height of the cabinets: from 18U to 46U
- width: 600 or 800 mm
- depth: 600, 800, 1000, and 1200 mm
- bearing welded frames shall be made of steel 2 mm in thickness, side walls shall be made of sheet steel 1,2 mm in thickness
- unit rack shall be depth adjustable, at a pitch of 25 mm
- door shall be fitted with a twist handle and lock arrangement, left and right hinge, angle of opening is more than 180
- detachable side panels with lock arrangements
- detachable rear panel, design variants:
- metal, perforated (60%)
- with acrylic glass (Plexiglas) inserted
- metal frame with tempered glass 4 mm in thickness
- cable enters through special hatches (on top and on the underside)
- the possibility exists of the fan unit installation (on top and on the underside), places of installation of the units are covered by slip blinds
- class of protection against ambient factors IP21
- anticorrosive and decorative coating powder enamel, standard color: RAL 7035 (gray);
- RAL 9005 (black) is also possible
- cabinets shall be installed on height-adjustable molded supports
- cabinets may be supplied in disassembled state, packaged in container or in the assembled condition (at the request of the customer)
- maximum allowable load: 750 kg (500 kg for the cabinets 18U and 24U high)
- framework (sheet steel) 1 pce.
- crossing profile (sheet steel):
- for cabinets available in depths: 600 mm and 800 mm 4 pce.
- for cabinets available in depths: 1000 mm and 1200 mm 6 pce.
- profile 19 (sheet steel) 4 pce.
- side panel:
- for cabinets available in depths: 600 mm and 800 mm 2 pce.
- for cabinets available in depths: 1000 mm and 1200 mm 4 pce.
- twist-and- clamp 2-4 pce.
- front door (perforated or with acrylic glass inserted) 1 pce.
- rear panel (perforated or solid panel) 1 pce.
- door lock arrangement, turning handle 1 pce.
