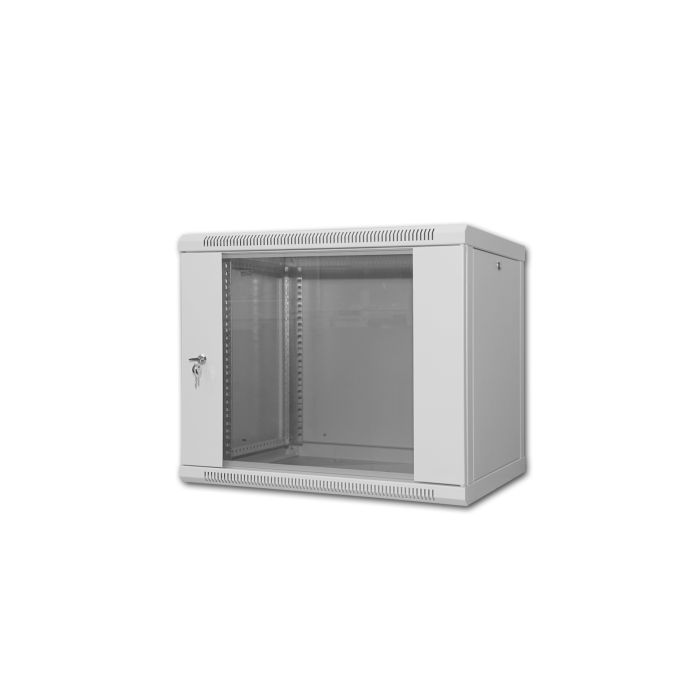

19" Комуникационен шкаф 6U/450mm, за монтаж на стена, закалено стъкло

Изчерпано количество

Available in stock:

  • 19 6U 600mm x 450mm
  • 19 9U 600mm x 450mm
  • 19 12U 600mm x 450mm
  • 19 12U 600mm x 600mm


  • design parameter: wall-mounted
  • structural element: all-welded construction (cabinets are suitable for
  • quick installation and erection of equipment, because require no assembly)
  • framework of the cabinet shall be made of sheet steel S=1,2 mm
  • unit rack shall be depth adjustable, at a pitch of 25 mm
  • door with single-point lock arrangement, left and right hinge, design with tempered glass (4 mm) angle of opening more than 180
  • side panels: detachable, 2 solid panels with single-point lock arrangements:
    • height: 6U, 9U, 12U
    • width: 600 mm
    • depth: 450 mm 600 mm
  • cabinet comes standard with 4 racks with controlled depth of installation
  • cable entries in the bottom and upper cover the following openings are available:
    • four openings for wall mounting - 9 mm
    • four openings for floor mounting - 9 mm
    • openings for passive ventilation at the side walls
  • anticorrosive and decorative coating powder polymer enamel, standard color: RAL 7035 (gray);
  • maximum static load: up to 70 kg
  • wall mounting shall be made using anchor bolts
  • all elements of the cabinet are grounded
Повече информация
Manufacturer TKS
