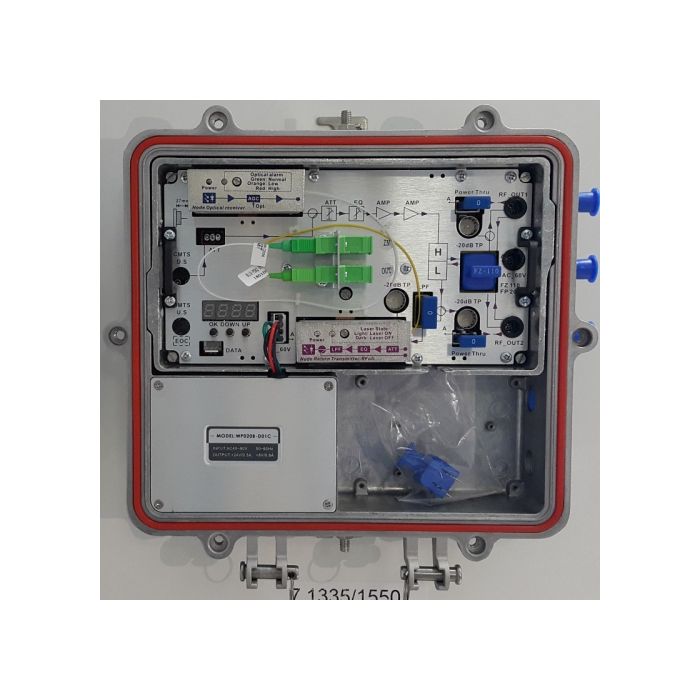

1G Оптичен приемник, 87-1002MHz, 60V, ACA

176,42 лв. 147,02 лв.
На склад
SKU
7.1336/060
Icon Етикет Описание Тип Размер Смъкни
pdf TKS1202AOR-CRP.pdf pdf Смъкни

TKS1202AOR is the new modular two-output CATV optical receiver. It adopts modular design, use more flexible. Microprocessor control, digital display the parameters, the engineering debug is especially easy. It is the main equipment to build the CATV network.

Performance Characteristics

  • High response PIN photoelectric conversion tube.
  • Optimized circuit design, SMT process production, optimized signal path, make the photoelectric signal transmission smoother.
  • Specialized RF attenuation chip, with good RF attenuation and equilibrium linear, high accuracy.
  • GaAs amplifier device, power doubler output, with high gain and low distortion.
  • Single Chip Microcomputer (SCM) control equipment working, LCD display the parameters, convenience and intuitive operation, and stable performance.
  • Excellent AGC performance, when the input optical power range is - 9 ~+2dBm, the output level keeps unchanged, CTB and CSO basically unchanged.
  • Reserved data communication interface, can connect with the Ethernet transponder, access to network management system.
Повече информация
Manufacturer TKS
