ATLas NG

  Multipurpose Spectrum and Broadcast Analyzer, 5 MHz to 6 GHz, ATSC 3.0 and DVB

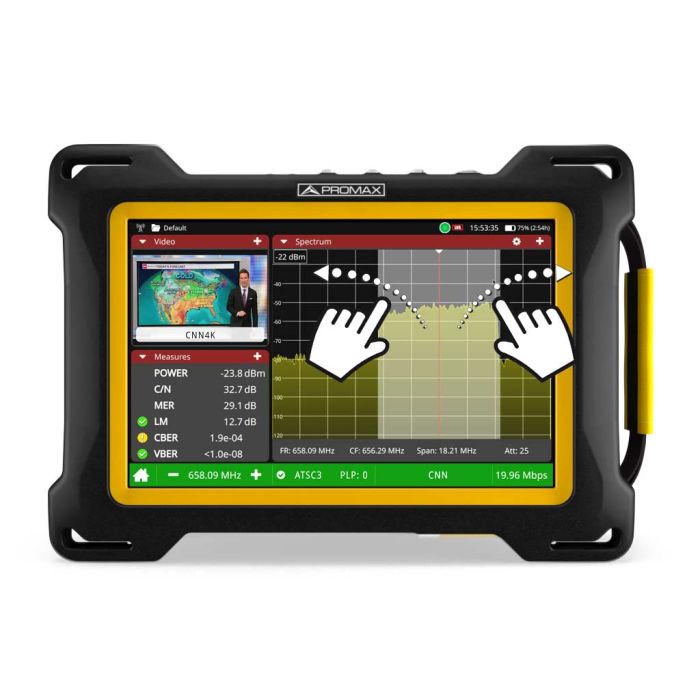

The PROMAX ATLAS NG Multipurpose Spectrum and Broadcast Analyzer (5 MHz to 6 GHz) covers the most stringent requirements for broadcast professionals. This unit includes 5G interference detection, ATSC 3.0, and DVB-S2x broadcast technologies. The 3G-SDI input allows for a full 3G-SDI signal diagnosis to be run and the IPTV analyzer allows for monitoring IPTV signals.

• Spectrum Analyzer Mode: 5 MHz to 6 GHz
• ASI-TS Operating Mode: Supports TS, T2MI, BTS
• ATSC 3.0 and DVB-S2x: Next-generation technologies
• 6 GHz Frequency Range: Interference mitigation in modern wireless networks
• 4K UHD Video Demodulation: Incorporates HDMI 1.4 connectivity
• SDI Input: Broadcast studios and OB vans
• Fiber Optics, IPTV, OTT, WiFi: Outstanding I/O capabilities
• 10 in. Multitouch Screen: Highly intuitive control
• ATSC 3.0: Route and MMT encoding
• DVB-S2x: Latest satellite technology
• DVB-S2/T2/C2: For satellite, terrestrial and cable
• ISDB-T: Selectable layers and EWBS
• High Speed Digital Processing: Real-time spectrum analyzer
• User-definable Markers: Accurate and direct measurements
• 2 kHz Resolution Filter: User-selectable from 2 to 1,000 kHz
• TI Terrestrial Interference: Detection and mitigation
• Direct C-Band Readings: Connect directly to user LNA
• 5G Interference Detection: Improves wireless network performance
• N-Type Universal Input: More robust with improved RF performance
• Optical Fiber: Optional selective power meter and converter (NOT included)
• 1 PPS Input: For GPS clock synchronization
• ASI-SDI Input/Output: For broadcast environments
• SFP+ Expansion Port: Ready for future applications
• IPTV Input: Dedicated RJ45 port
• USB 3.0 + 8 GB Internal Memory: Fast data transfer and software updates
• Ethernet Port: Wiring test and remote control
• Common Interface: Scrambled services de-encryption
• Ultra HD Supports HDMI 1.4b: 2.9 GB/s up to 3840 x 2160 @30 Hz

Applications

• TV broadcast and data
• Air navigation and maritime communications
• Banking comms
• E-government
• Backhaul in remote areas or in mission-critical operations
• Aircraft Radar altimeters
• Weather/metrological stations
• ITS (Intelligent Transport Systems)
• ISM (Industrial, Scientific and Medical)
