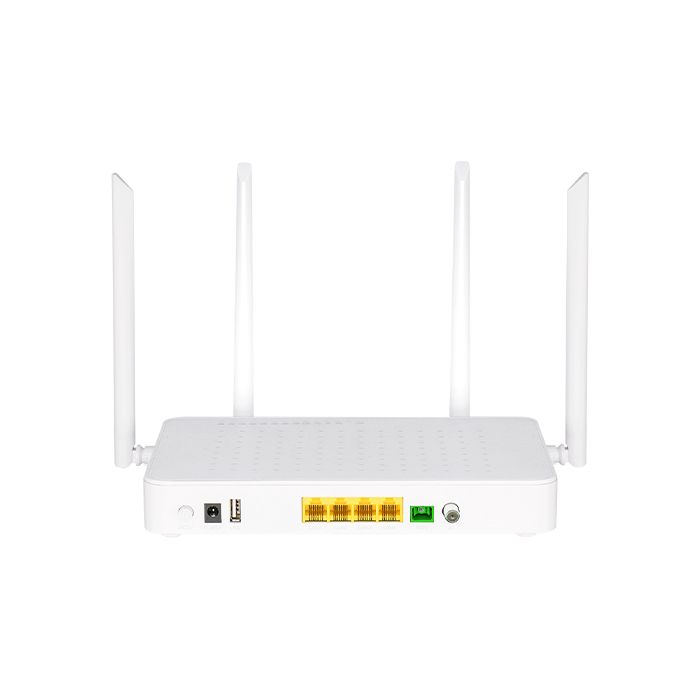

BDCOM GP1704-4GC-22A ONU
На склад
SKU
5.7221/ONU
| Icon | Етикет | Описание | Тип | Размер | Смъкни |
|---|---|---|---|---|---|
|
GP1704 CATV HGU Series.pdf | 9 MB | Смъкни |
| PON ports | 1-Port SC/APC |
| UNI ports | 4-Port Gigabit RJ45 1-Port RF(British system) |
| WIFI | 1200Mbps |
| USB | 1 |
| Optical power | |
| TX power | 0.5~5dBm |
| RX sensitive | < -28dBm |
| CATV | |
| TX level | ≥70dbuv |
| Receiver AGC Range | -15~-5dbm |
| AC adaptor | Input: 100-240V AC Output: 12V/1.5A |
| Max. consumption (W) | 15 |
| Chassis | |
| Dimensions (WxDxH mm) | 230 x 140 x 34.9 |
| Weight(Kg)(empty) | 0.4 |
| Package | |
| Dimensions (WxDxH mm) | 325 x 255 x 48 |
| Weight (Kg) | 0.7 |
| Operating Temperature Humidity | -0℃ -45℃ 10%~85% (non-condensing ) |
| Storage Temperature Humidity | -40℃ -85℃ 5%-95% (non-condensing ) |
| Accessories | Power adaptor |
| Manufacturer | BDCOM |
|---|
