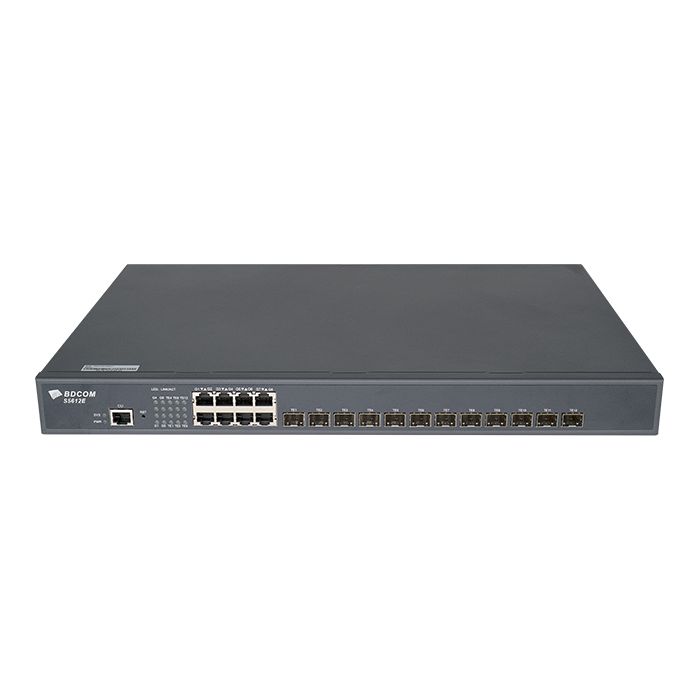

BDCOM S5612E-2AC SWITCH
1 548,36 лв.
1 290,30 лв.
На склад
SKU
5.2135/SWI
| Icon | Етикет | Описание | Тип | Размер | Смъкни |
|---|---|---|---|---|---|
|
BDCOM S5612E Switch.pdf | 473 KB | Смъкни | ||
|
|
05-Web Configuration.pdf | 1.4 MB | Смъкни |
L3 Managed Full-10G Stackable Switch
Enhanced-version S5612 with improved switching capacity, higher reliability and top-class hardware quality, fit nicely for Internet Service Provider and enterprise aggregation network
Carrier-level High Reliability
Versatile IPv6 Solution
Innovative Energy-saving Design
Varied Service Features
| Interface | 8-Port Gigabit RJ45, 12-Port 10G/GE SFP+ |
| Console | 1-Port RJ45 |
| Backplane | 176Gbps |
| Forwarding rate | 132 Mpps |
| Chassis | |
| Dimensions(WxDxH)(mm) | 440x280x44 |
| Package | |
| Weight(KG)(empty) | 3.6 |
| Dimensions(WxDxH)(mm) | 576x448x94 |
| Power consumption | |
| Weight(KG) | 4.8 |
| no-load | < 35W |
| Power supply | |
| full-load | 50W |
| AC: 100V-240V,50Hz±10% | Single AC (optional for Dual Power) |
| Total output BTU (1000BTU/H=293W) | 170.65 |
| Fan number | 2 |
| Noise@25°C（dBA) | 57 |
| MTBF(H) | >100,000 |
| Forwarding mode | Store-forward |
| Flash (MB) | 16 |
| DRAM (MB) | 1024 |
| MAC | 32K |
| Buffer size(MB) | 3 |
| Jumbo frame | 9K |
| Routing table | |
| IPv4 | 32K |
| IPv6 | 8K |
| ARP table | |
| IPv4 | 10K |
| IPv6 | 5K |
| Total SVI | 1K |
| Manufacturer | BDCOM |
|---|
