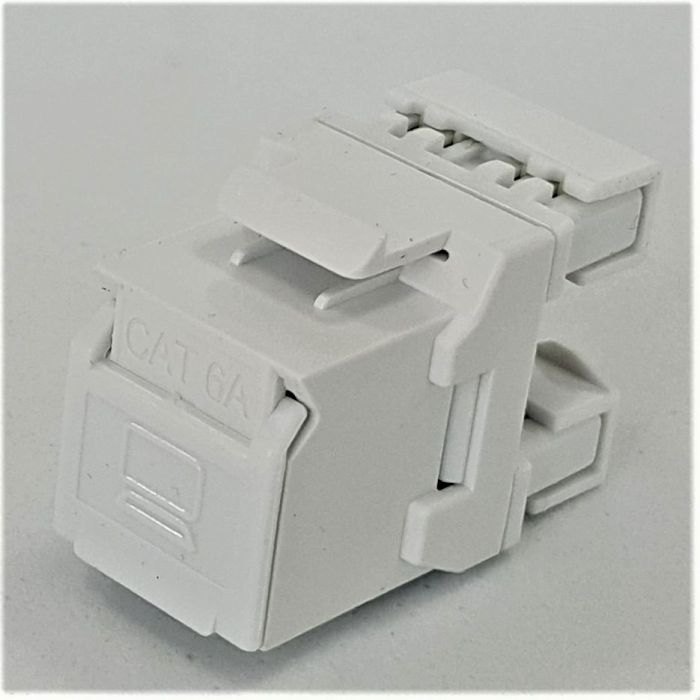

CAT6a UTP 90° (KEYSTONE JACK)

На склад
SKU
7.66122/ACC

FEATURES :

  • RJ45 8P 8C 50 inch Gold Plated Jack
  • 1U 24 Port High Density Assembly
  • Provides the total solution of your local network
  • Double IDC connector can accept 23-26 AWG solid and stranded cables
  • T568 AB wiring and easy installation support
  • RoHS compliant
  • Performance ANSI / TIA / EIA-568-C.2, ISO / IE 11801 and
  • EN50173-1 Category 6 specifications

ELECTRICAL SPECIFICATIONS:

  • Dielectric Strength: 1000 V RMS for 1 minute
  • Insulation Resistance: 10 M min
  • Contact Resistance: 2 m per contact
  • Temperature Range: -20 C to 60 C max
  • Humidity: 10% -65%
  • Contact Resistance: Maximum 20m Ohm
  • Unbalance Input: Maximum 200m Ohms
  • Input / Output Resistance
  • Dielectric Strength: For 1 Minute 1000 Volt rms
  • Insulation Resistance: 500MegaOhm min. @ 500 Vdc
  • DC Resistance: Max. 0.1 Ohm @ 20 C

APPLICATIONS :

  • 10Base-T / 100Base-Tx
  • 100Base-T4 / 1000Base-Tx
  • ATM-25 / ATM-51 / ATM-155
  • 100VG-AnyLan
  • TR-4 / TR-16 Active / TR16 Passive
  • DIMENSIONS PHYSICAL SPECIFICATIONS:
  • High impact plastic body, Flame retardant UL 94V-0 (ABS + PC, UL 94V-0)
  • IDC Contact: 100 inch nickel plated on phosphor bronze
  • IDC Working Life: Minimum 250 Re-Terminations
  • Jack Contact: Phosphor bronze, 50 inch gold plated over nickel plated contact area
  • Jack Working Life: Minimum 750 entries
  • PCB: FR-4, 1.6mm thickness
  • RJCC socket, conforming to FCC part 68, maiting endurance 750 cycles, Can be used in no-load keystone wall plate or patch panel;
  • Available in Cat6, T568A and T568B cables. It is necessary to cover every wiring.
  • Plastic Housing: PC UL94V-0
  • Contact Material: Selective Gold Plated Phosphor Bronze Over Nickel
  • Contact Area Connector
  • Terminals: Phosphor Bronze and TinPlated, User for 22-26 AWG
  • Standard and solid wire, durability 200 cycles;
  • 100 micron nickel over copper and
  • 50u gold plated. Supports T568A and TS568B
  • Supports ANSI / EIA / TIA, 568B2-1 standards,
  • Storage degree. : -40 + 85 C
  • Operating temperature. : -20 + 60 C
  • Tested and passed EMC has EN-5502, Class B (Europe); FCC Part 15,
  • Subpart J, Class A (USA) Certified
  • Tin plated IDC contact material phosphor bronze over nickel:
  • IDC Residences:
  • 1.Dual IDC: 110 LSA
  • 2.PC UL94V-0
  • IDC Cover: ABS
Повече информация
Manufacturer Hi-Tech
