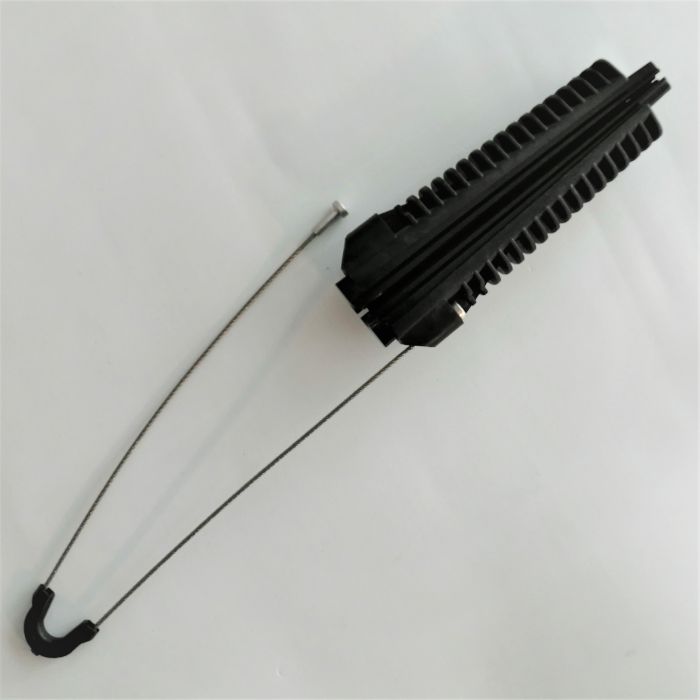

Държач (обтегач) PA-3001 за кабел с носещо въже Ø12–16mm, 8kN
На склад
SKU
7.9372/CLA
Icon | Етикет | Описание | Тип | Размер | Смъкни |
---|---|---|---|---|---|
Anchoring clamp PA-3000, 8.0kN.pdf | 571.9 KB | Смъкни |
* Параметърът Сила на разрушаване (MBL) е тестван и потвърден от орган за контрол тип А, притежаващ акредитация от Българска Служба за Акредитация.
Продуктът може да бъде използван в мрежите на електроразпределителните дружества.
Tension clamp for figure-8 fiber optic cable PA-3001 with stainless steel or aluminum alloy messenger, are developed to anchor optical fiber cable with steel messenger during construction of transmission fiber optic lines.
Key features
- Anchoring clamps PA-3000 are self-adjusted and appropriate for usage with steel messenger.
- During anchoring of fiber optical cable, they guarantee no cable insulation damages or slipping, if indicated load achieved.
- The stainless steel bail allows installations of tension clamps on a pole brackets or hooks.
- Materials: stainless steel bail, high strength aluminum alloy, fiberglass reinforced plastic, Zink wedges.
- All parts are secured, this prevent the loss of its pieces.
- These anchoring clamps allow an easy, direct dead-ending of aerial figure8 cable with steel messenger without additional tools.
- All the assemblies passed the tensile tests, operation experience with temperatures ranging from 60C up to +60C test, temperature cycling test, aging test, corrosion resistance test etc.
Technical Specification
- Minimum breaking load (MBL): 8kN
- Laboratory tested breaking force*: 8,5kN
- Weight: 0,38 kg
- Bail length, mm: 320mm
- Standard: NFC 33-041
- Cable size: 12 - 16mm
Manufacturer | Hi-Tech |
---|
