Инструмент за надлъжно разцепване на тубичка

166,28 лв. 138,57 лв.
На склад
SKU
4.5003\JON
Icon Етикет Описание Тип Размер Смъкни
pdf Jonard Tools MS-6 Data Sheet.pdf pdf Смъкни

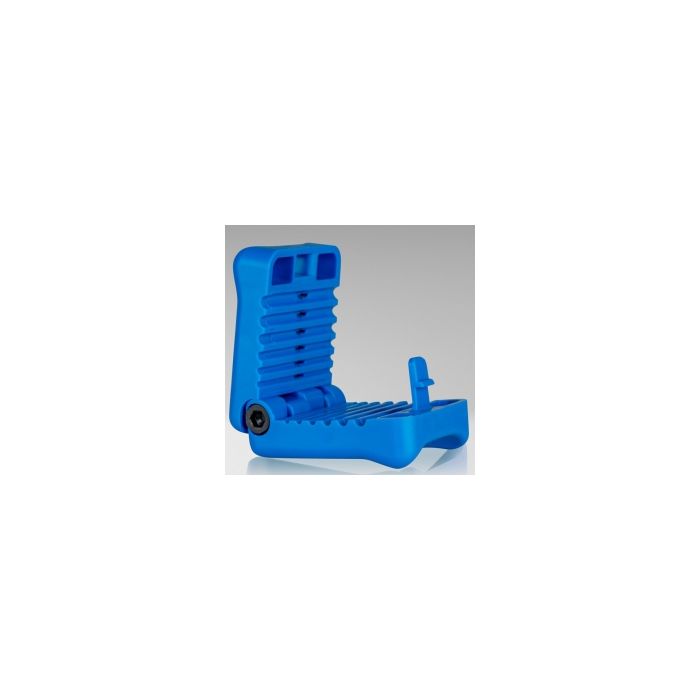

The Jonard Tools PATENTED MS-6 Mid Span Slitter is designed to provide easy access to optical fibers in loose buffer tubes 1.2mm - 3.3 mm diameter. With 6 precision grooves buffer tube slitting is done without damage to the fiber. The blades are replaceable.

Groove Sizes:

  • 1.2 - 1.5 mm
  • 1.5 - 1.8 mm
  • 1.8 - 2.1 mm
  • 2.1 - 2.5 mm
  • 2.5 - 2.9 mm
  • 2.9 - 3.3 mm

Easy to use:

Select the correct groove. Each groove is marked with the recommended fiber size

Place the fiber in the groove to be used. The arrow on the top of the MS-6 indicates blade location and pulling direction.

Close the tool making sure lock is engaged and pull

Note:

This tool is specified for use on the OFS EZ-Bend 3.0mm cable.

Works on Corning's outdoor ALTOS loose tube, Microduct MiniXtend HD and MiniXtend cable with Binderless FastAccess Techonology, and on their indoor/outdoor FREEDM and LSZH loose tube cables having 1.4, 1.7, 2.5mm buffer tubes.

Works great on PPC semiflex 3mm

Replacement blade set available, part number: MSB-1533

Повече информация
Manufacturer Jonard
