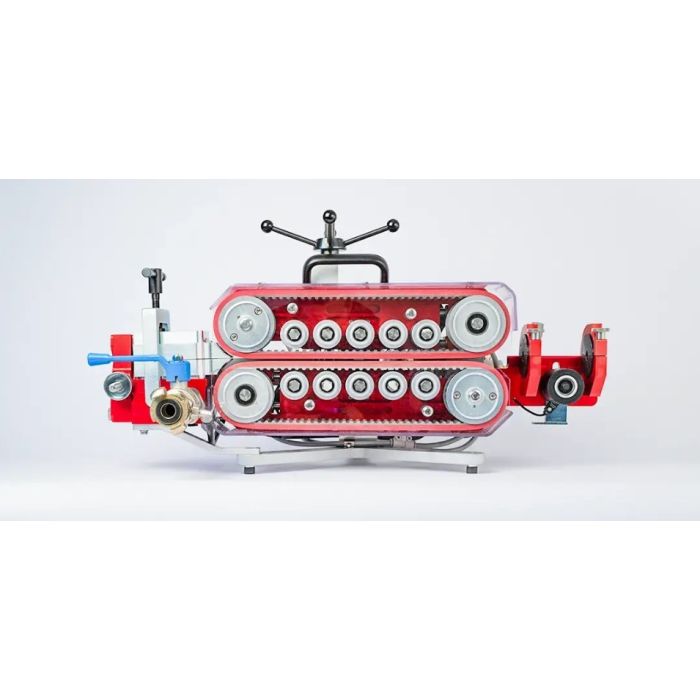

Машина за вдухване на оптични кабели V3-NE 1800N

 Robust and powerful, pneumatic operated fiber blowing machine designed for single cables and for relining of multiple micro ducts. Configuration can be made for cable between 4 and 40 mm and duct dimensions between 10 and 63 mm. The unique Joystick controller and the agile motors securing a optimal control of the installation. With an anodized aluminum construction, the machine is lightweight but still very strong.

FIBER BLOWING MACHINE FOR CABLE

4-40 MM / DUCT 10-63 MM

   Pneumatic operation, double motors.

   Electronic counter for speed and distance.

   Gentle operation with long contact surface on the cable.

   Display for speed, distance and pressure in duct.

   Max. speed 50 m/min (165 ft./min), max pushing force on cable 1800 N.

   Adjustable clamping force.

   Option of sub-ducting kit for installing several micro ducts. Example: 7×7/3.5 mm or

   4×14/10 mm in a 50 mm tube simultaneously.

   Works with JetLogger

   Joystick Controller with forward and reverse function.

   Duct air quick release valve.

   STD CONFIGURATION

   Transport case

   Extra fixtur

   1 bottle Micro Duct Lube

   1 bottle Duct Lube

   1 bottle pneumatic oil

   Service kit

   12 mm cabels guides
