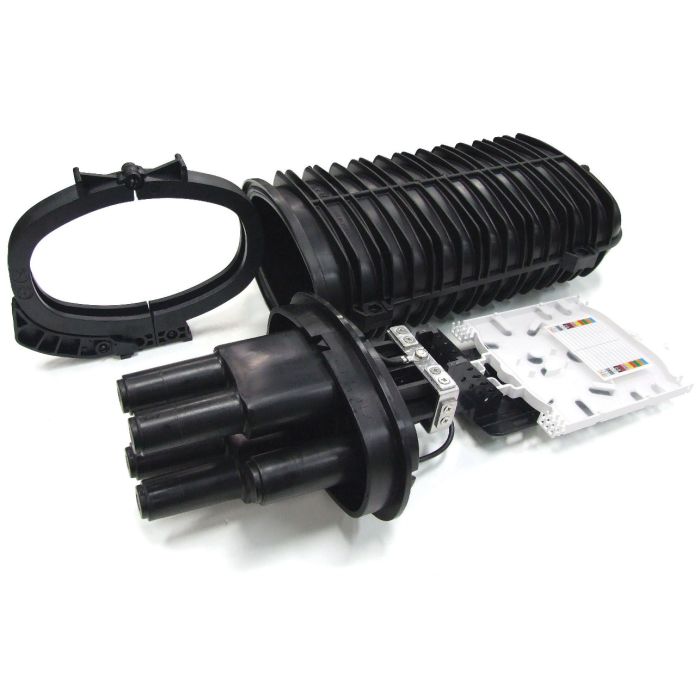

Оптична муфа BS604А 12/24 сплайса, вкл. 1 касета

Water Ingress Sensing in the Closure

• Water ingress sensing without reopening the closure
• Easy verification of installation
• Efficient maintenance / Establishing database on network

Mechanical Clamp on Cable Sheath

• Adjusting cable diameter without any special work
• Minimizing damage on cable sheath and reducing loss range
• Reliable clamping against cable flexing and cable torsion

Compatibility

• Various branching method with 6 inlet ports
• Two dual cable ports for mid span branch

Efficient Splicing

• Efficient fiber management by splicing and storing 12core basis
• Single or dual fiber routing method
• Loose tube, mechanical splice storage available
• Individual tray access
• Full bend radius control
• Accommodates 48 cores and up to 96cores available

Specifications

• Size, mm: 522 x 211 x 174
• Weight, kg: 2
• Cable port: 6
• Cable diameter, mm: Min: 8, Max: 24
• Cable type: Loose tube, ribbon
• Number of splice trays: 4
• Splice tray capacity: 12, 24 cores
• Splice capacity: 48, 96 cores
• Central strength member: Galvanized steel wire, FRP, wire
