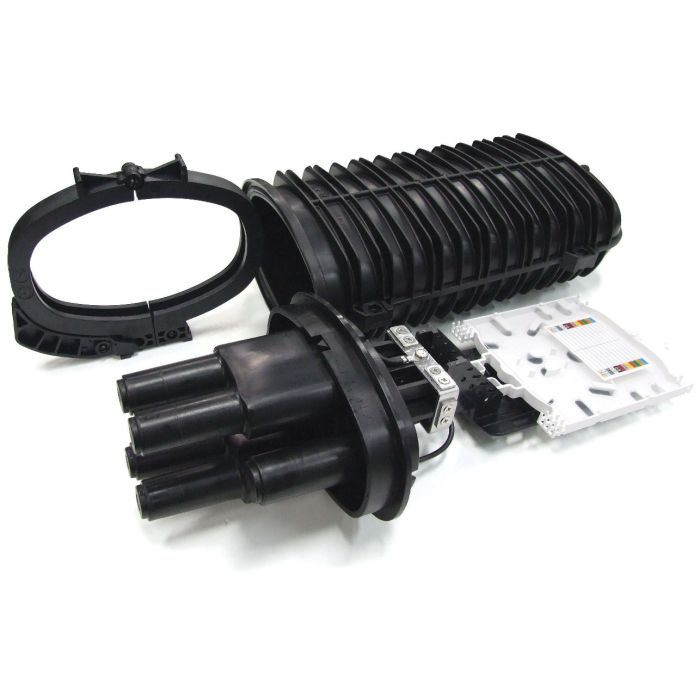

Оптична муфа BS604А 48/96 сплайса, вкл. 4 касети

165,04 лв. 137,53 лв.
Изчерпано количество
SKU
7.6200/1881
Icon Етикет Описание Тип Размер Смъкни
pdf BS604.pdf pdf Смъкни

Water Ingress Sensing in the Closure

  • Water ingress sensing without reopening the closure
  • Easy verification of installation
  • Efficient maintenance / Establishing database on network

Mechanical Clamp on Cable Sheath

  • Adjusting cable diameter without any special work
  • Minimizing damage on cable sheath and reducing loss range
  • Reliable clamping against cable flexing and cable torsion

Compatibility

  • Various branching method with 6 inlet ports
  • Two dual cable ports for mid span branch

Efficient Splicing

  • Efficient fiber management by splicing and storing 12core basis
  • Single or dual fiber routing method
  • Loose tube, mechanical splice storage available
  • Individual tray access
  • Full bend radius control
  • Accommodates 48 cores and up to 96cores available

Specifications

  • Size, mm: 522 x 211 x 174
  • Weight, kg: 2
  • Cable port: 6
  • Cable diameter, mm: Min: 8, Max: 24
  • Cable type: Loose tube, ribbon
  • Number of splice trays: 4
  • Splice tray capacity: 12, 24 cores
  • Splice capacity: 48, 96 cores
  • Central strength member: Galvanized steel wire, FRP, wire
Повече информация
Manufacturer Vissem
