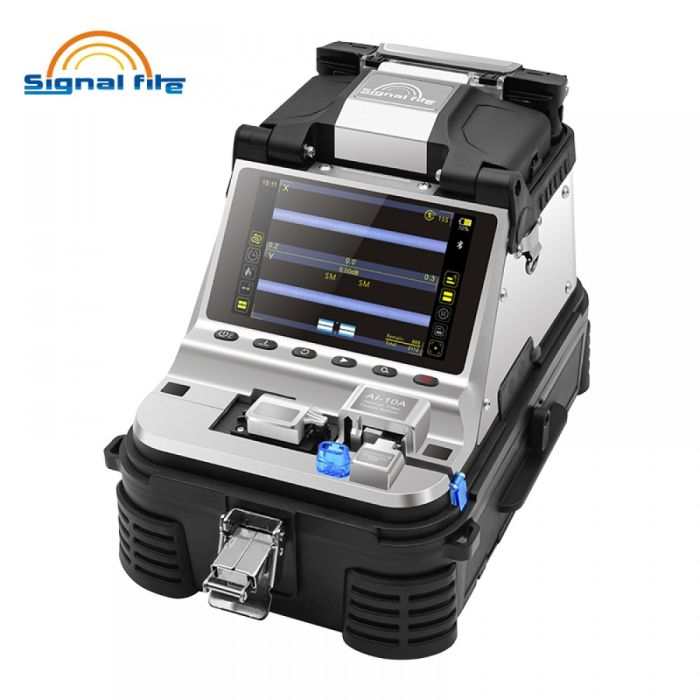

Сплайсер AI-10A

На склад

Product Overview


AI-10A Optical Fiber Fusion Splicer is the world's first fourth-generation fiber cable fusion splicer, it combines electric cleaver and fusion splicer as one, with 8-in-1 signal fire stripper, and can be combined with the work bench and table, making it is the world's first real sense, small size, light weight, easy to operate optical fiber fusion splicer.


The FTTH AI-10A fiber Fusion Splicer uses a number of patents, the full weight of the main machine, the toolbox and a complete set of accessories is only 4.5KG, and the toolbox size is 25.5cmx16.5cm x23cm. In such a small and compact case, the combined design of bench and bench is realized at the same time. Industrial CPU, running speed is super fast, 6 seconds fast splicing, 15 seconds heating, 5 inch color HD LCD screen, 320 times magnification, 7800mAh large capacity lithium battery can splice and heat 240 cores, in high altitude, dry, cold and other harsh environments still perform well.



Product Specifications


  • Construction Description


  • Fiber Alignment Core/Cladding
  • Splicing Time 6s
  • Heating Time 15s,can be customized according to the external environment
  • Motor Number 6 motors
  • Fiber Type Single-mode fiber (SMF/G.652), BIF/G.657);

Suitable for single mode, multi-mode, bare fiber tail fiber, drop cable,

jumper, invisible fiber fusion;

  • The Cladding Diameter 80-150 μm
  • Splicing Loss 0.02dB (SM),0.01dB (MM),0.04dB (DS/NZDS)
  • Splicing Mode Automatic focusing core alignment, conventional/high precision welding
  • Splicing Way Automatic, semi-automatic,manually
  • Fiber Cleaver Equipped with electric high-precision cleaver
  • Fiber Holder Three in one fixture, no need to change, suitable

for single/multi-mode, multi-core cable/bare

fiber, tail fiber,jumper fiber,drop cable

  • VFL The machine comes with: power: 15mW, 2Hz

flashing and steady on mode

  • OPM Wavelength: 850nm; 1300nm, 1310nm,1490nm, 1550nm, 1625nm
  • Measurement range: -50+30dbm Absolute error: <0.3dB (-50dbm ~+3dBm range)
  • Battery Capacity 7800mAh large capacity lithium battery charging

time ≤3.5; It can continuously weld and heat about 240 cores

  • Magnification 320x (X or Y axis single display), 200x (X or Y axis dual display)
  • Fiber Diameter Coating diameter: 80-150μm/Coating diameter: 100-1000μm
  • Cutting Length Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm
  • Heat Shrink Tube 60mm,50mm,40mm,25mm
  • Tensile Testing standard 2N
  • Display 5 inch TFT color display screen
  • Boot Time 1s, boot can enter the working mode
  • Data is Stored Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.
  • Wireless Communication Based on bluetooth 4.2 protocol standard,

the working band is 2.4GHz, the maximum transmission range is 60m

  • Software Upgrade Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software
  • Management Function The equipment owner can be bound as the highest authority, and can remotely view the

splicing records, splicing time, loss, etc. through the mobile phone APP.

The number of splicing times or working time of the equipment can be set.

The manager can effectively manage a single or multiple equipment

  • Return Loss Better than 60 db
  • Product Protection Waterproof, dust proof and fall proof
  • Power Supply Input AC100-240V 50/60Hz, output DC13.5V/4.8A,

the current power mode can be identified, real-time monitoring of the current battery level

  • The Work Environment Temperature: -15 ~ +50℃, humidity: < 95%RH

(no condensation), working altitude: 0 ~ 5000m,

maximum wind speed: ≤15m/s

Повече информация
Manufacturer Hi-Tech
