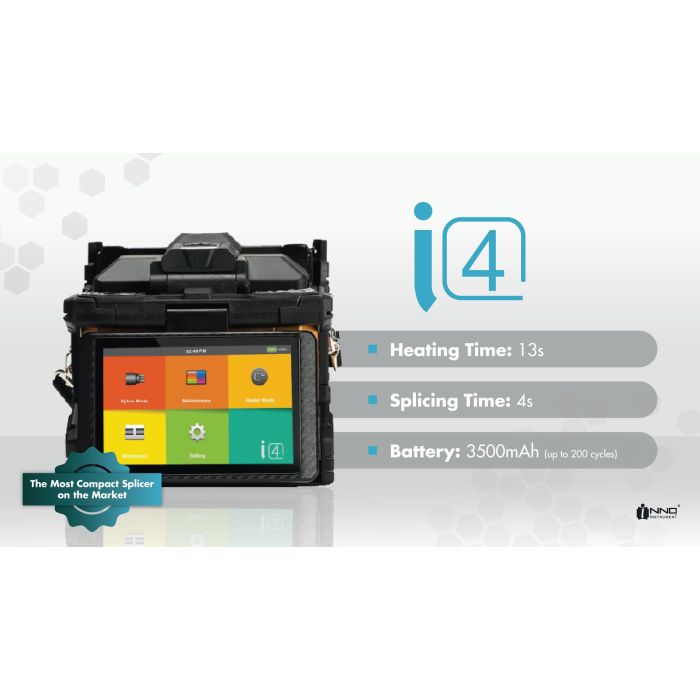

 INNO I4 FUSION SPLICER MACHINE

Is system is a precision fiber alignment mechanism commonly used in fusion splicing and optical fiber alignment equipment. Unlike passive alignment methods that rely solely on mechanical features, active V-groove alignment utilizes real-time feedback from optical power measurements to dynamically adjust the fiber position for optimal core-to-core alignment. This method ensures minimal splice loss by actively moving the fibers within the V-groove channels along the X and Y axes during the splicing process IN I4 FUSION SPLICER . The “I4”  on typically refers to a splicer model or series that supports active alignment technology, offering enhanced accuracy and reliability, especially for single-mode fibers or bend-insensitive fibers like G657A1.

TECHNICAL SPECIFICATION OF I4 FUSION SPLICER

Model:                                                    i4

Alignment Method:                             Active V-Groove Alignment

Number of Fiber:                                 Single

Applicable Fiber:                                 SM (G.652 & G.657) / MM (G.651) / DS (G.653) / NZDS (G.655) / CS (G.654) EDF

Coating Diameter:                               100um – 3mm

Cladding Diameter:                             80 – 150um

Cleave Length:                                      5 – 16mm

Typical Splice Loss:                             SM: 0.03DB / MM: 0.01DB / DS: 0.05DB / NZDS: 0.05DB / G.657: 0.03DB

Return Loss:                                         >> 60db

Splice Time:                                          Quick mode: Avg. 4 sec / SM mode: Avg. 5sec

Splice Programs:                                  Max 300 modes

Automatic Calibration:                       Automatic Arc Calibration by air pressure & temperature

Electrode Life Span:                            6000 Arc Discharges

Heating Programs:                              Max 100 modes

Heating time:                                        13 sec (45mm, 60mm slim)

Protection Sleeve:                                20mm – 60mm

Data Output:                                         USB-C

Splice Memory:                                     10,000 Splice data / 10,000 Splice image

Battery:                                                   Battery Capacity: 3500 mAh / Operation Cycle: 200 cycles (Splicing+Heating)

Power Supply:                                       AC Input 100-240V, DC Input 9-19V

Monitor:                                                 4.3″ Color LCD display, Full Touch Screen

Magnification:                                       x130, x320

Size:                                                         132 x 137 x 139mm

Weight:                                                   1.384kg (1.164kg without battery)

Pull Test:                                                1.96 – 2.25N

WEIGHT AND DIMENSION OF I4 FUSION SPLICER

Height: 130mm

Width: 137mm

Depth: 132mm

Weight: 1384kg: 1.164kg without battery

ENVIRONMENT CONDITION OF I4 FUSION SPLICER

Operating Condition: Altitude: 0 – 5000m

Humidity: 0 – 95%, non-dew

Temperature: -10 to 50’c

Wind: up to 15m/sec

Storage Conditions:   Huminidity: 0 – 95%, non – dew

Temperature: -20 to 60’C

Resistance Tests:       Shock Resistance: 76cm for bottom surface drop

Expose to Dust: 0.1 to 500um diameter aluminum silicate

Rain Resistance : 10 mm/h for 10 mins

• Water resistance (IPx2)
• Shock resistance (Drop torm 76cm)
• Dust resistance (IP5x)

V1 cleaver in the kit:

• One-step Operation
• Magnetic Fiber Holder
• Off-cut Bin
• Maintenance Free
