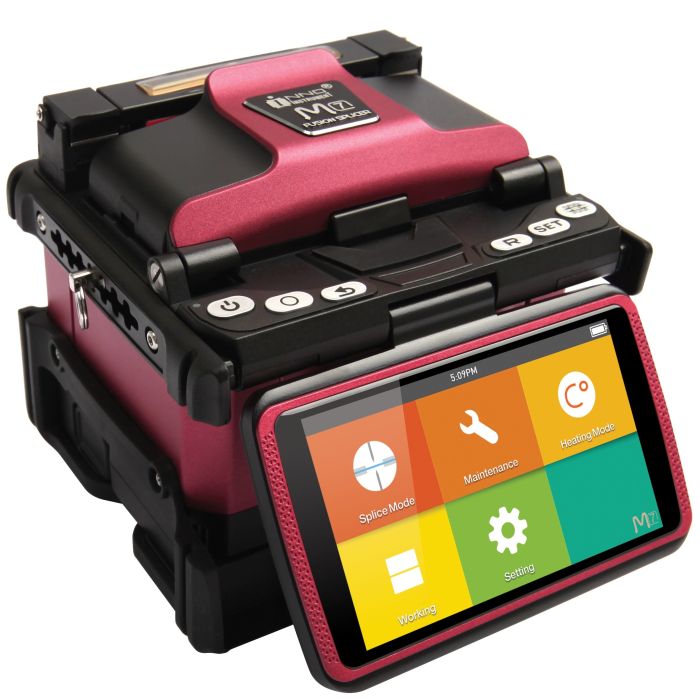

Сплайсер M7, резачка V7

5867,50 лв. 4889,58 лв.
На склад
SKU
7.8215/SPL
Icon Етикет Описание Тип Размер Смъкни
pdf M7 Catalogue_170913.pdf pdf Смъкни

Description

M7, an active clad-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market. This small but powerful fusion splicer inherits many remarkable functionalities from sister products. M7s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, user can Zoom In Out the image to the outstanding magnification of 400x. Moreover, the adjustable strap hanger make users to customize M7 for their working condition. M7 is genuinely worlds most efficient hand-held fusion splicer in the telecommunications industry.

Specifications

  • Dimension: 124H x 144W x 131D (including rubber bumper)
  • Weight: 1.56kg (including battery) / 1.31kg (without battery)
  • Number of Fiber: Single
  • Applicable Fibers: SM(ITU-T G.652T G.657) / MM(ITU-T G.651) / DS(ITU- T G.653) / NZDS(ITU-T G.655)
  • Compatible Fiber / Cable: 0.25~3.0 mm / indoor Cable
  • Cleaved Length: 10 - 16 mm
  • Cladding Diameter: 80 m - 150 m
  • Splicing Mode: Max 100 modes, preset 7 modes
  • Heating Mode: Max 30 modes, preset 3 modes
  • Typical Splice Loss: 0.03dB(SM) / 0.02dB(MM) / 0.05dB(DS) / 0.05dB(NZDS) / 0.03dB(G.657)
  • Return Loss: Measured by cut-back method relevant to ITU-T standards ( 60dB)
  • Lighting: 2 White LEDs
  • Splicing Time: 12 sec
  • Estimated Splice Loss: Available
  • Heating Sleeve Length: 20 mm - 60 mm
  • Heating Time: Typical 20 sec
  • Results Storage: Last 10,000 records
  • Tention Test: 1.96~2.25N
  • Operating Condition: Altitude 0~5000m above sea level, Humidity 0~95%RH, -10~50C, Wind 15m/s
  • Storage Condition: Humidity 0~95%RH, -20~60C, battery -20~30C
  • Display: 90 bi-directional view, 4.3 Color High Resolution Display
  • Fiber View Magnification: 300X magnification with 3 display modes, 400X partial magnification
  • Power Supply: AC Input 100-240V, DC Input 9-14V
  • No. of Splice / Heating with Battery: 3000mAh Battery Capacity / Typical 110 times (Splice + Heat)
  • Operating Methods: Button / Touch Screen
  • Automatic Calibration: Automatic arc calibration by air pressure and temperature
  • Electrode Life: 5500 arcs, can be extended by using an electrode grinder
  • Terminal: USB Type-C
Повече информация
Manufacturer INNO Instrument Inc.
