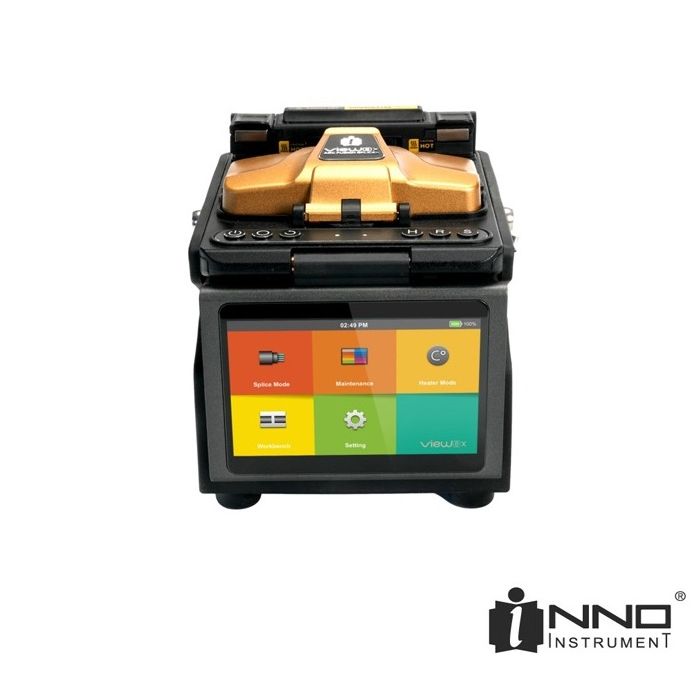

Сплайсер View 8X, резачка V12

 The View 8X from INNO Instrument is a first-class core alignment splicer. The X stands for “eXceed eXpectations”—and that’s exactly what the View 8X does: it exceeds your expectations. The South Korean high-end manufacturer’s flagship sets the benchmark for splicing efficiency. Period.

This device’s features are not lacking in superlatives:

Splicing time: 4 seconds. Heating time: 9 seconds. Battery power: 500 work cycles. Magnification: 520 ×.

Plus a high-resolution 5-inch color LCD touchscreen, intuitive user interface, robust design, large memory for measured values and documentation images. The View 8X is not to be overlooked.

A decisive added value of INNO splicers is the integration into the free View Pro Cloud Management System, which enables an entirely new. level of remote management. The web-based application enables onsite staff and back-office management to optimize workflows, generate comprehensive evaluations and much more.

• Core alignment
• High-speed splicing and heating
• Large battery capacity
• Bright operating light
• Versatile fiber holder
• 5-inch color LCD touch screen
• Intuitive operation with smart GUI
• Suitable for working in the Deutsche Telekom network

Technical specifications:

Model View 8X

Number of fiber Single

Alignment method Core alignment

Applicable fibers SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)

Coating diameter 100 μm to 3 mm

Cleaved length 5 to 16 mm

Cladding diameter 80 to 150 μm

Splice programs Maximal 128 modes

Heating programs Maximal 32 modes

Typical splice loss SM: 0.01 dB / MM: 0.01 dB / DS: 0.03 dB / NZDS: 0.03 dB / G.657: 0.01 dB

Splice time (typical) * Quick mode: 4 seconds / SM mode 5 seconds / Auto mode: 7 seconds

Heating time Quick mode: 9 seconds / Average: 13 seconds

Protection sleeve length 20 to 60 mm

Display 5″ Color LCD display, Full Touch Screen

Fiber view X, Y, XY, X/Y

Fiber display (magnification) × 360 and × 520

Return loss › 60 dB

Data storage Last 20,000 (values) or 10,000 (images) results

Pull test 1,96 to 2,25 N

Operation Button / Touch screen

Lighting White LED

Power supply AC input 100 to 240 V / DC input 9 to 19 V

Battery * Capacity: 9,000 mAh / Typical operation cycles: 500 cycles (splicing and heating)

Electrode life span 6,000 arc discharges

Data output Cloud (View Pro Manager) and USB-C

Operating conditions * Operating altitude: 0 to 5,000 m above sea level / 0 to 95 % relative humidity (non-dew)

−10 to 50 °C / Max. wind 15 m/s

Storage conditions 0 to 95 % relative humidity (non-dew) / −40 to 80 °C

Tests Water resistance (IPx2): Rain resistance: 10 mm/h for 10 minutes

Shock resistance: 76 cm for bottom surface drop

Dust resistance (IP5X): Exposure to dust: 0.1 to 500 μm diameter aluminium silicate

Dimensions in mm

(Height × Width × Depth) 162 × 143 × 158

Weight 2.68 kg

*Splicing time: measured from the time of fibers entering the screen until the estimated loss is displayed.

Splicing time can vary depending on calibration status.

*Battery: Measured as a one-minute splicing and heating cycle. Measured in energy-saving mode.

*Responsibility for damage resulting from misuse of the product is not accepted

Fully Automatic Premium Fiber Cleaver V12 included in the kit

• Auto blade rotation
• Digital counter
• Exelent visibility (90*)
• Magnetic fiber holder
