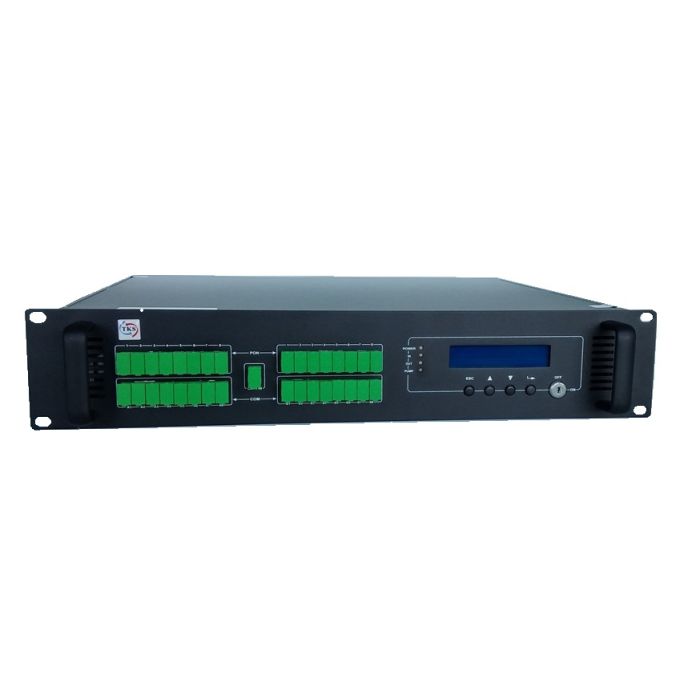

TKS Многопортов усилвател EDFA със смесител за PON 16p x 19dBm
На склад
SKU
7.1409/AMP
Icon | Етикет | Описание | Тип | Размер | Смъкни |
---|---|---|---|---|---|
|
OA TKS-POA-XX ver.2.pdf | 41.7 KB | Смъкни |
TKS-POA series is multi-port optical amplifier that provides high optical power at each output and the possibility for combining of the signals from xPON equipment (1310 and 1490nm) and the broadband CATV signal. This amplifier is especially designed for application in GePON and GPON networks.
Application
- Single-mode fiber 1550 amplification network
- FTTH network
- CATV network
Performance Characteristics
- Adopts Er-Yb co-doped double-clad fiber technology;
- Output ports: 4-32 optional;
- Optical output power: total output up to 2W;
- Low noise figure: 5dB when input is 0dBm;
- Perfect network management interface, in line with standard SNMP network management;
- Intelligent temperature control system make the power consumption lower;
- Output power: 0-3dB adjustable.
Manufacturer | TKS |
---|
