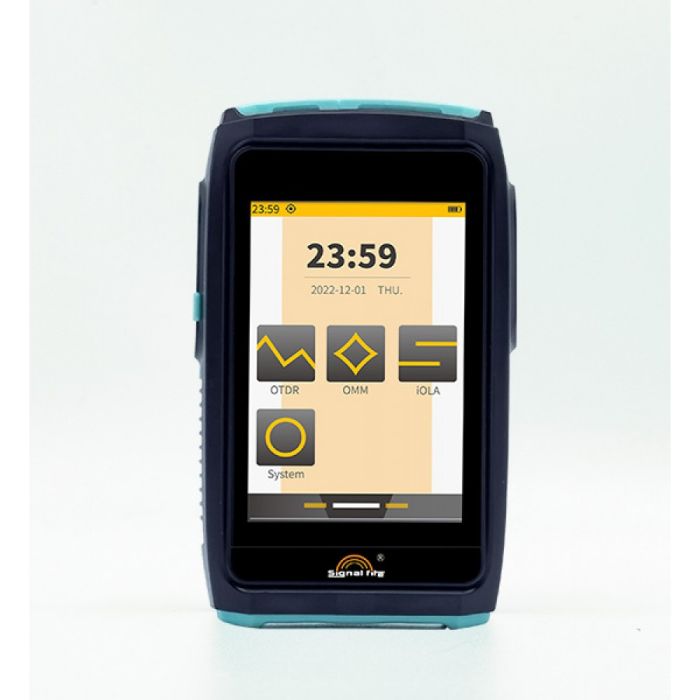

Mini OTDR ZS1000-B

На склад

Signal fire OTDR(optical time-domain reflectometer) ZS1000-A/B has five functions: OTDR, iOLA, Optical power meter, stable light source, red light source, LED flashlight. The dynamic range is 20db, test range is 100m-80km, attenuation dead zone is 12m, and the event dead zone is less than 3m. It adopts a 3.5-inch full color high-definition touch screen, a 2000mAh lithium battery, and a compact but powerful body.

Signal fire Optical Time Domain Reflectometer (OTDR) is a precision optoelectronic integrated instrument that utilizes the Rayleigh scattering and Fresnel reflection of light transmitted in optical fibers to generate backscatter. It is widely used in the maintenance and construction of optical cable lines, and can measure the length of optical fibers, transmission attenuation of optical fibers, joint attenuation, and fault location.This machine can be tested automatically with one click, making it easy to operate. It is designed as a handheld device, making it more compact and portable. High speed signal processing, shorter testing time, and faster analysis. It can store 8000 sampling points, type-C interface. The humanized OTDR simulation software can display the details of events!

  • Dynamic Range   20dB
  • Test Range   100m~ 80km
  • Wavelength      ZS1000-B:1550(±20nm)single wave
  • OTDR/OLS Connector   SC
  • Pulse Width   5ns~ 20µs
  • Measurement Time   5s~180s
  • Measurement Mode      Real time,Average,Automatic
  • Attenuation Dead Zone   12m
  • Event Dead Zone   <3m
  • Sampling Point   8000
  • Input Light Detection   Support
  • Maximum allowable     1277nm <10dBm 1310nm <10dBm

            power for light testing  1490nm <10dBm 1577nm < 10dBm

  • OPM power range      -50~26dBm
  • OPM response wavelength   700nm~1700nm
  • OPM calibration wavelength   850nm、1300nm 1310nm、1490nm、1550nm、1625nm
  • OPM power uncertainty   ±0.2dB
  • VFL   I0mW
  • LCD   3.5-inch high-definition touch screen
  • Type-C Cable   Type-Cxl
  • Self-calibration   Support
  • LED Light   Support
  • Expandable external storage   USB (Temporary storage)
  • Working Temperature 0 ℃~50 ℃
  • Storage Temperature   -20 ℃~ 70 ℃
  • Relative Humidity   <90%
  • Size(H*W*D)   117mmx70mmx33mm
  • Weight   About 217g
